Description

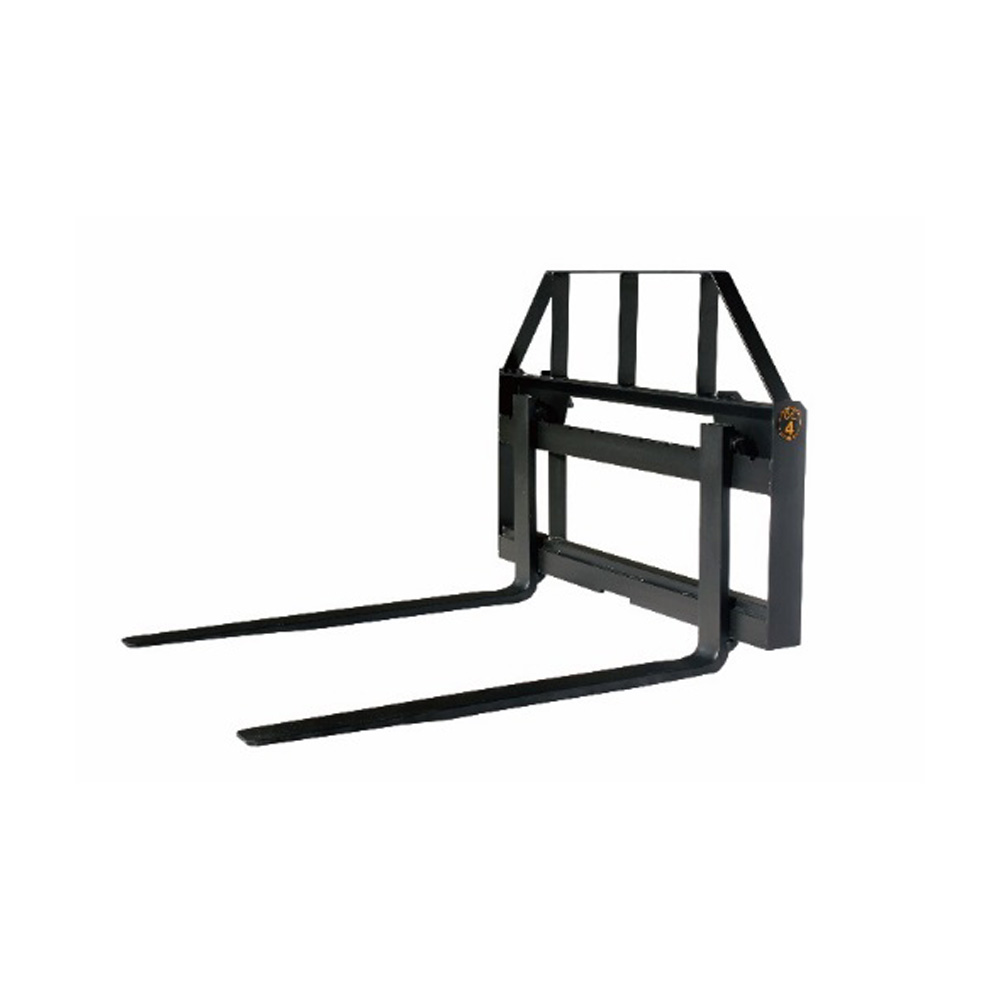

COMPACT DUTY Pallet Forks for Tractors & Mini Skid Steers
The COMPACT DUTY Pallet Forks from Construction Attachments are designed specifically for tractor loaders and mini skid steers. With a 2,200 lb lifting capacity, lightweight 238 lb design and 42″ forged fork tines, these compact pallet forks provide excellent material-handling capability without adding unnecessary attachment weight to smaller machines.
Designed for compact loaders up to 50 horsepower, these pallet forks are ideal for moving pallets, lumber, landscaping materials, feed, fencing, building supplies and other materials around farms, jobsites and properties.
COMPACT DUTY Pallet Fork Features
- 2,200 lb lifting capacity
- Designed for tractor loaders and mini skid steers
- Recommended for compact loaders up to 50 HP
- 42″ forged fork tines
- Fork size: 3.15″ x 1.18″
- Forged tines meet ITA standards
- Adjustable fork spacing from 6-1/2″ to 44-3/4″
- Frame width: 45-1/2″
- Frame height: 29-1/2″
- Estimated weight: 238 lbs
- Top guard designed for excellent load visibility
- Frame and fork tines available separately
- Ships fully assembled
- 24-Month Factory Warranty
2,200 LB Capacity in a Compact Pallet Fork
Attachment weight matters on smaller tractors and mini skid steers. At approximately 238 lbs, the COMPACT DUTY frame provides a strong 2,200 lb rated lifting capacity while keeping the attachment appropriately sized for compact equipment.
As a result, operators get useful lifting and material-handling capability without putting an unnecessarily large pallet fork attachment on a smaller machine.
Always operate within the rated lifting capacity of your tractor, mini skid steer or loader.
42″ Forged ITA Fork Tines
The COMPACT DUTY Pallet Forks feature 42″ forged fork tines built for strength, durability and long service life.
The forged tines meet ITA standards and measure approximately 3.15″ wide x 1.18″ thick.
In addition, fork spacing adjusts from 6-1/2″ to 44-3/4″, allowing operators to position the forks for different pallets, materials and load widths.
High-Visibility Compact Frame
Good visibility makes positioning pallet forks easier. Therefore, the COMPACT DUTY frame uses a top guard designed to provide excellent operator load visibility.
The frame measures approximately 45-1/2″ wide x 29-1/2″ high, providing a compact profile well suited for tractor loaders and mini skid steers.
Pallet Forks for Material Handling
These compact pallet forks turn a tractor loader or mini skid steer into a versatile material-handling machine.
Common applications include:
- Pallets
- Lumber
- Landscaping materials
- Feed and seed
- Fencing materials
- Building supplies
- Farm supplies
- Jobsite materials
- Bagged materials
- General loading and unloading
Whether you’re working on a farm, construction site, landscaping project or property, pallet forks can greatly expand what your compact machine can handle.
COMPACT DUTY Pallet Fork Specifications
| Specification | COMPACT DUTY |
|---|---|
| Lifting Capacity | 2,200 lbs |
| Fork Length | 42″ |
| Fork Size | 3.15″ x 1.18″ |
| Adjustable Fork Spacing | 6-1/2″ – 44-3/4″ |
| Frame Width | 45-1/2″ |
| Frame Height | 29-1/2″ |
| Estimated Weight | 238 lbs |
| Machine Class | Compact Loaders up to 50 HP |
| Applications | Tractor Loaders & Mini Skid Steers |
| Fork Construction | Forged / ITA Standard |
| Factory Warranty | 24 Months |
Frequently Asked Questions
What machines are these compact pallet forks designed for?
The COMPACT DUTY Pallet Forks are designed for tractor loaders and mini skid steers, with applications for compact loaders up to 50 horsepower.
What is the lifting capacity?
The pallet forks are rated for 2,200 lbs. However, the actual safe lifting capacity is limited by the rated capacity of the host machine and loader.
How long are the forks?
The forged fork tines are 42 inches long.
Are the forks adjustable?
Yes. Fork spacing adjusts from approximately 6-1/2″ to 44-3/4″ for different pallets and load widths.
How much does the attachment weigh?
The COMPACT DUTY Pallet Fork attachment weighs approximately 238 lbs.
Do the pallet forks come assembled?
Yes. All pallet forks come fully assembled.
Will these pallet forks fit my tractor or mini skid steer?
Mounting systems and loader specifications vary. Provide your tractor or mini skid steer make and model when ordering so the appropriate configuration can be confirmed.
Order COMPACT DUTY Pallet Forks
Add dependable material-handling capability to your tractor loader or mini skid steer with a compact pallet fork attachment built around forged tines, adjustable spacing and a high-visibility frame.
Need help confirming fitment? Call Construction Attachments at 800-255-4461 with your machine make and model.
24-Month Factory Warranty
