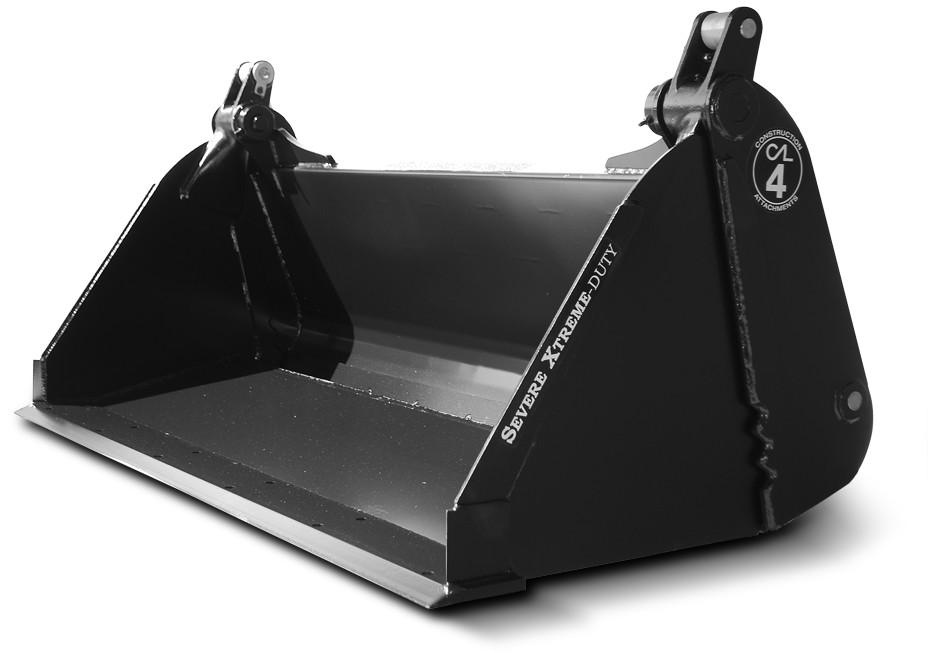

Severe Xtreme Duty Low Profile 4-IN-1 Multi-Purpose Bucket
Severe Xtreme Duty Low Profile Bucket 4-IN-1 Multi-Purpose Attachment is designed for rubber tire and rubber track host machines up to 130 horsepower. This bucket is available in 67″, 73″, 76″, 80″ and 84″ with the following options: bolt-on large teeth, weld-on teeth, bolt-on cutting edge, bolt-on tooth bar and extended tooth bar.
Product Features:
- For rubber tire or rubber track host machines up to 130 horsepower, and tractor loaders
- Low profile for improved load visibility
- Radius moldboard for improved material loading and unloading
- Pre-drilled 6” x ¾” front cutting edge to accommodate all bolt-on options
- Solid 6” x ¾” edge is attached to buckets with weld-on teeth
- Reversible bolt-on edge standard for dozer section
- Models include 67”, 73”, 76”, 80” and 84”
Front edge options:
- Bolt-on Large Teeth
- Weld-on Teeth
- Reversible Bolt-on Cutting Edge
- Bolt-on Tooth Bar
- Bolt-on Extended Tooth Bar
Related products
Industrial Tractor Loader Backhoe Bucket Attachment
Duty Ratings, CAL Duty Ratings, Industrial, General Purpose Buckets, Industrial Tractor Loader Backhoes, All Products
FOR INDUSTRIAL LOADERS AND TRACTOR LOADER BACKHOES INDUSTRIAL.
PRODUCT FEATURES:
- Designed specifically for industrial tractor loader backhoes
- 1/4" moldboard with 5/16" lower reinforcement and robust top bracket
- Integrated 5/16" bucket ribs on the back
- Bucket bottom reinforced with 1/2" X 3-1/2" wear strip
- 3/4" 1065 steel weld-in cutting edge is standard for all sizes
- 1085 steel bolt-on, reversible edges are available in every size
- Include 5/16" upper side cutters, in addition to lower side cutters of 1/2" X 4" weld-on cutting edge material
Severe Xtreme Duty Grapple Bucket
Duty Ratings, CAL Duty Ratings, Severe Xtreme, Grapple Attachments, Skid Steer Loaders, Track Loaders, All Products
Severe Xtreme Duty Grapple Bucket is designed for rubber tire host machines up to 130 horsepower. It is the ideal attachment for high-repetition use in harsh environments.
PRODUCT FEATURES:
- Ideal attachment for harsh environments
- Used for the removal of building, forestry, and scrap yard debris
- Low profile for improved load visibility
- 19" wide lids are uniform between our Root Grapple and Grapple Bucket lines
- Large grapple opening of over 44" designed to clamp evenly around load
- Maximum grapple clamping force: 6,000 LBS @ 3,000 psi
- 3/4" x 6" weld-on cutting edge for all models
- Accepts a reversible bolt-on edge
- Radius moldboard for improved unloading and added strength
- 1" lid tines and heavily-gusseted lids
- Covered hoses for full protection in harsh environments
- Rear hitch designed to match host machine
- 3/4" lid tines and heavily-gusseted lids; neoprene bushings for high repetition
- Greaseable pins and 2-3/4" bore cushion cylinders
- Rear hitch designed to match host machine
Severe Xtreme Duty Low Profile General Purpose Bucket
General Purpose Buckets, Rubber Tire Machines, Rubber Track Machines, Tractor Loaders, All Products, Duty Ratings
The Severe Xtreme DutyTM Low Profile General Purpose Bucket Attachment is designed with a high-strength, abrasion-resistant front cutting edge pre-drilled to accommodate bolt-on attachment options and is designed for compatibility with rubber tire or rubber track host machines up to 130 horsepower. This bucket is available in 67", 73", 78", 84" and 88" models.
Product Features:
- For rubber tire or rubber track host machines up to 130 horsepower
- Extended bottom design provides front edge visibility for machine operator
- Radius moldboard for improved material loading and unloading
- Pre-drilled high-strength, abrasion-resistant front cutting edge accommodates all bolt-on attachments
- A solid 6" edge is attached to buckets with weld-on teeth
- Models include 67", 73", 78", and 84"
- Large Bolt-on Teeth
- Weld-on Teeth
- Reversible Bolt-on Cutting Edge
- Bolt-on Tooth Bar
- Bolt-on Extended Bar
Stump Bucket Grapple Severe Xtreme Duty Attachment
Duty Ratings, CAL Duty Ratings, Grapple Attachments, Compact Track Loaders, Severe Xtreme, Skid Steer Loaders, Specialty Attachments, Stump Buckets, All Products
The Severe Xtreme Duty Stump Bucket Grapple attachment features a bucket bottom with an aggressive tapered cutting edge. The attachment's angled cylinder maximizes strength with over 4,100 lbs of clamp force at the tip max at 3,000 psi. The design allows operators to take advantage of a huge 55" grapple opening to meet every challenge.
Product Features:
A — Bucket bottom reinforced and protected with a series of 1/2" x 2" ribs/wear-bars across the entire bottom surface
B — Tapered cutting edge with CNC cut tooth pattern allows real cutting action as opposed to teeth cut in standard "flat mild" steel that cannot effectively cut
C — Cylinder angle maximizes force while still offering a huge opening
D — Large diameter pins to reduce the wearing effects of repetition
- Angled grapple frame and 3/4" material result in unparalleled strength and rigidity
- Specially-designed load transfer plate
- 3" bore cylinder generates over 4,100 LBS of clamping force at the tip max at 3,000 psi
- Price includes hydraulic hoses and fittings
- Over 55" grapple opening
Ultra Duty High Capacity Landscape Bucket
Duty Ratings, CAL Duty Ratings, General Purpose Buckets, Rubber Tire Machines, Rubber Track Machines, Tractor Loaders, Ultra Duty, All Products
FOR RUBBER TIRE OR RUBBER TRACK MACHINES UP TO 130 HORSEPOWER AND TRACTOR LOADERS FROM 80 HORSEPOWER TO 130 HORSEPOWER
PRODUCT FEATURES:
- 3/4" pre-drilled edge for bolt-on edge
- 3/4" solid edge material for weld-on teeth application
- 5/8" wear strips
- 3/8" edge reinforcements.
- 3/8" side plates
- 1/2" side cutter
- 8 upper reinforcement gussets
- For high volume loading and unloading
Xtreme Duty Extended Bottom Low Profile General Purpose Bucket
The XTREME Duty™ Extended Bottom Low Profile General Purpose Bucket Attachment is designed with a high-strength, abrasion-resistant front cutting edge pre-drilled to accommodate bolt-on attachment options, and is designed for compatibility with rubber tire host machines up to 100 horsepower or rubber track host machines up to 80 horsepower. This bucket attachment is available in 62", 66", 72", 78" and 84" models.
Product Features:
- For rubber tire host machines up to 100 horsepower or rubber track host machines up to 80 horsepower
- Extended bottom design provides front edge visibility for machine operator
- Radius moldboard for improved material loading and unloading
- Pre-drilled high-strength, abrasion-resistant front cutting edge accommodates all bolt-on attachments
- A solid edge is attached to buckets with weld-on teeth
- Models include 62”, 66”, 72”, 78”, and 84”
- Bucket sizes 62” – 78” have a 5/8” x 6" welded cutting edge
- 84” buckets have a ¾” x 6" welded cutting edge
- Bolt-on Teeth
- Weld-on Teeth
- Reversible Bolt-on Cutting Edge
- Bolt-on Tooth Bar
- Bolt-on Extended Tooth Bar
Xtreme Duty Nursery Bucket
Duty Ratings, CAL Duty Ratings, General Purpose Buckets, Rubber Tire Machines, Rubber Track Machines, Xtreme Duty, All Products
Xtreme Duty nursery bucket designed for rubber tire machines up to 100 horsepower or rubber track machines up to 80 horsepower.
PRODUCT FEATURES:
Extended bottom design provides front edge visibility for machine operator
Specifically designed for transporting nursery stock, not for grading
Lightweightremoveable top guard
