Description

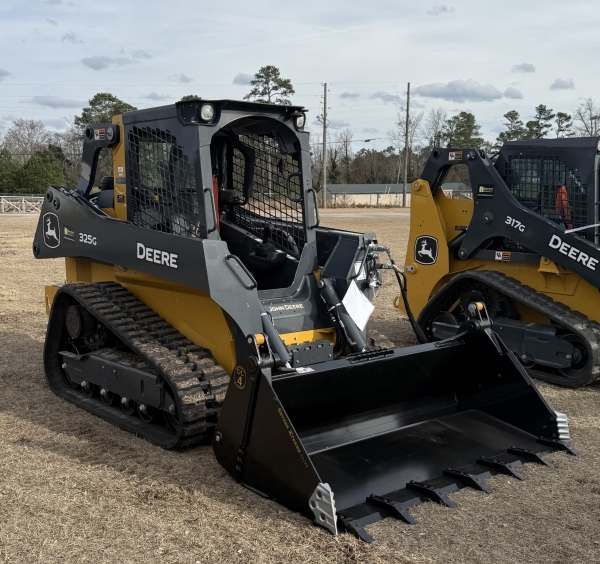

Severe Xtreme Duty 4-in-1 Skid Steer Bucket
The Construction Attachments Severe Xtreme Duty 4-in-1 Skid Steer Bucket is built for demanding commercial applications where strength, versatility and hydraulic clamping power matter. Also known as a multi-purpose bucket, combination bucket or clam bucket, this heavy-duty attachment allows operators to dig, load, grapple, clamp, doze, grade, scrape and bottom-dump with one bucket.
Designed for skid steers, compact track loaders, tractor loaders and rubber-tire loaders, the Severe Xtreme Duty 4-in-1 Bucket delivers up to 6,000 lbs. of clamping force at 3,000 PSI and features a heavy 3/4″ x 6″ cutting edge with multiple tooth, cutting-edge and side-cutter configurations available.
Severe Xtreme Duty Features
- 6,000 lbs. maximum clamping force @ 3,000 PSI
- Heavy 3/4″ x 6″ front cutting edge
- 40.25″ maximum clam opening
- Radius moldboard for efficient loading and unloading
- Bolt-on reversible rear clam and dozer edges
- Multiple bucket widths available
- Weld-on teeth available
- Bolt-on tooth bar configurations available
- Extended bolt-on tooth bar available
- Bolt-on side cutters available
- Universal Skid Steer Hitch included
- Additional hitch options available
- 24-Month Factory Warranty
Dig, Grapple, Doze & Grade with One Bucket
Unlike a standard skid steer bucket, the hydraulic clam gives this 4-in-1 bucket multiple working functions.
Dig & Load: Operate the bucket closed for conventional digging, scooping, loading and material handling.
Grapple & Clamp: Open the hydraulic clam to grab and control logs, brush, rocks, demolition debris and other irregular material.
Doze & Grade: Use the open bucket for spreading, backfilling, grading and site preparation.
Scrape & Bottom Dump: Scrape material or hydraulically open the bucket for controlled bottom dumping.
For contractors and equipment owners who perform multiple operations on the same job, a heavy-duty 4-in-1 bucket can reduce attachment changes while increasing the versatility of the host machine.
Heavy-Duty Construction for Demanding Applications
The Severe Xtreme Duty Multi-Purpose Bucket is engineered for hard-working equipment and demanding applications.
A heavy 3/4″ x 6″ front cutting edge provides durability at the primary wear point. Bolt-on reversible rear clam and dozer edges provide replaceable wear surfaces, while multiple tooth and side-cutter configurations allow the bucket to be matched to the application.
Hydraulic Specifications
| Specification | Severe Xtreme Duty |
|---|---|
| Maximum Clamping Force | 6,000 lbs. @ 3,000 PSI |
| Maximum Clam Opening | 40.25″ |
| Front Cutting Edge | 3/4″ x 6″ |
| Cylinder Bore | 2.75″ |
| Cylinder Rod Diameter | 1.5″ |
| Cylinder Stroke | 7.87″ |
Available 4-in-1 Bucket Configurations
Choose the bucket size and configuration that best matches your machine and application. Available configurations include:
- Standard cutting edge
- Bolt-on cutting edge
- Bolt-on side cutters
- Large bolt-on teeth
- Weld-on teeth
- Bolt-on tooth bar
- Extended bolt-on tooth bar
- Tooth bar and side-cutter combinations
Bucket dimensions, capacity and operating weight vary by model and configuration. See the product options and specifications for the exact model you are ordering.
Built for Skid Steers, Track Loaders & Tractor Loaders
The Severe Xtreme Duty 4-in-1 Bucket is designed for demanding applications involving:
- Skid steer loaders
- Compact track loaders
- Tractor loaders
- Rubber-tire loaders
A Universal Skid Steer Hitch is included in the product price, with additional hitch options available.
Specify the make and model of your machine when ordering to ensure the correct attachment configuration.
Frequently Asked Questions
What is a 4-in-1 skid steer bucket?
A 4-in-1 skid steer bucket is a hydraulic multi-purpose bucket that performs conventional digging and loading while also opening to grapple, clamp, doze, grade, scrape and bottom-dump material.
Is a multi-purpose bucket the same as a 4-in-1 bucket?
Yes. 4-in-1 bucket, multi-purpose bucket, combination bucket, combo bucket and clam bucket are commonly used names for this type of hydraulic loader attachment.
What can you do with a 4-in-1 bucket?
A 4-in-1 bucket can be used for digging, loading, grappling, clamping, dozing, grading, scraping, backfilling, material handling and bottom dumping.
How much clamping force does this bucket have?
The Severe Xtreme Duty model delivers up to 6,000 lbs of clamping force at 3,000 PSI.
How far does the clam open?
Maximum clam opening is 40.25 inches.
Can I get the bucket with teeth?
Yes. Multiple configurations are available, including weld-on teeth, bolt-on tooth bars, extended bolt-on tooth bars and side cutters.
Will this 4-in-1 bucket fit my skid steer?
A Universal Skid Steer Hitch is included, with additional hitch options available. Provide your machine’s make and model when ordering so the appropriate attachment configuration can be confirmed.
Configure Your Severe Xtreme Duty 4-in-1 Bucket
Select your bucket size, cutting-edge or tooth configuration, side cutters and hitch options above.
Need help matching a bucket to your machine? Call Construction Attachments at 800-255-4461.
