Description

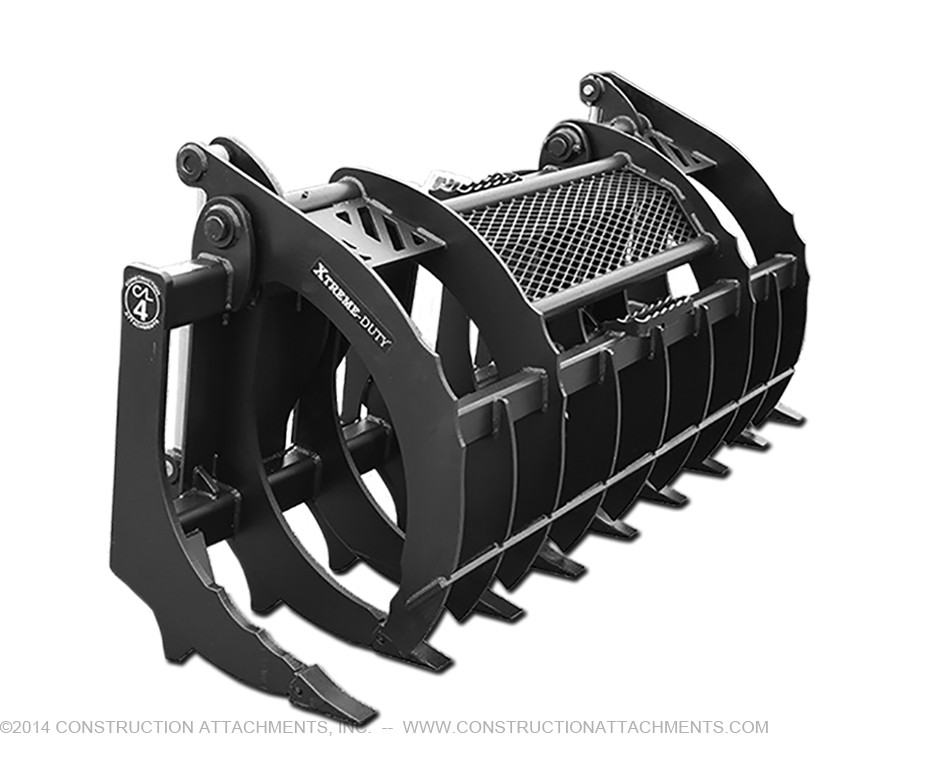

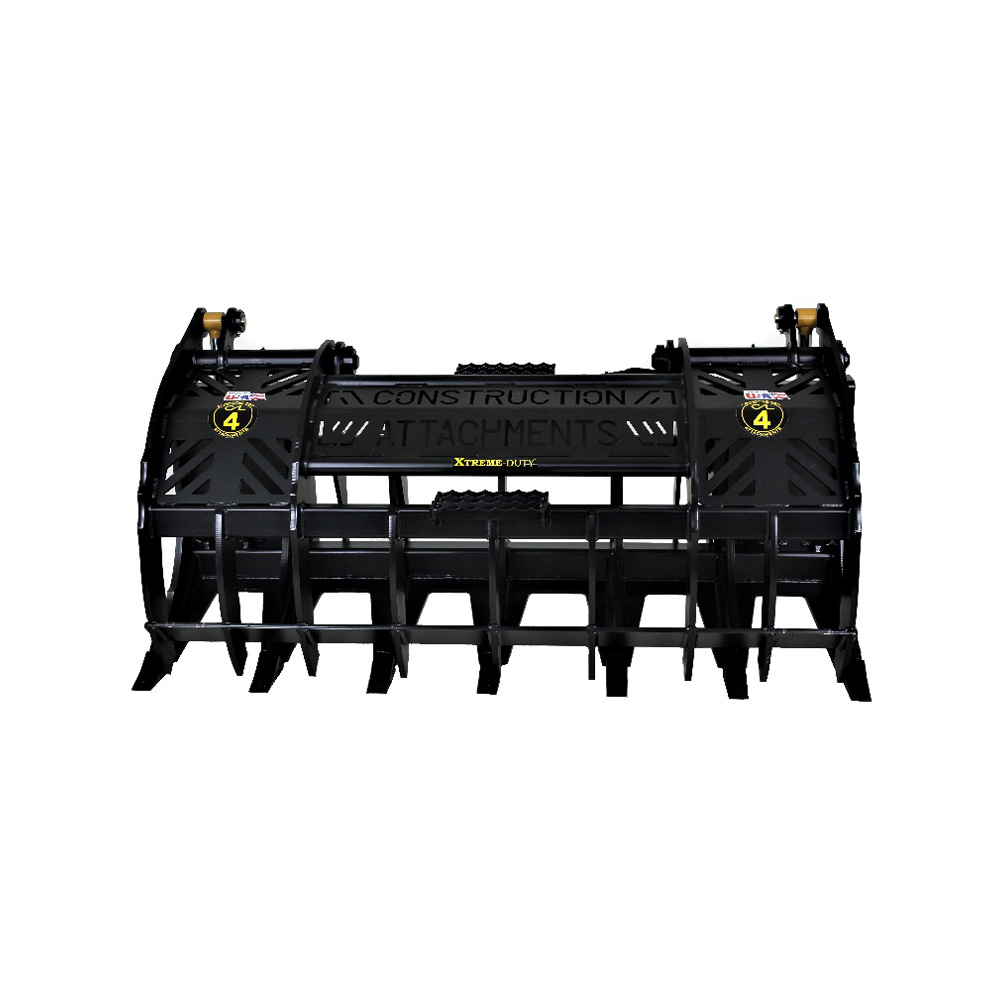

XTREME DUTY Root Rake Grapple
The XTREME DUTY Root Rake Grapple from Construction Attachments is built for demanding land clearing, root removal, brush cleanup and debris handling. Designed for skid steer and tractor loaders from 51–100 horsepower, this aggressive attachment combines heavy rake tines with powerful hydraulic clamping for excavating, separating, grabbing and moving difficult material.
With up to 6,000 lbs of clamping force at 3,000 PSI and a 43″ maximum grapple opening, the XTREME DUTY Root Rake Grapple provides the strength and opening needed to handle roots, rocks, brush, logs and bulky debris.
XTREME DUTY Root Rake Grapple Features
- 6,000 lbs maximum clamping force @ 3,000 PSI
- 43″ maximum grapple opening
- Heavy-duty 1.5″ rake tine thickness
- Available in 74″, 80″ and 86″ widths
- Replaceable rake teeth
- 2.75″ cylinder bore
- 1.5″ cylinder rod diameter
- 7.87″ cylinder stroke
- Safety check valve
- Brush guard for operator protection
- Hoses and couplers included with grapple models
- Designed for skid steer and tractor loaders
- Designed for 51–100 HP machines
- 24-Month Factory Warranty
Dig Roots, Clear Brush & Separate Debris
The open root rake design allows operators to work beneath roots, rocks, brush and other debris while allowing loose soil to pass through the attachment.
As a result, operators can remove unwanted material while reducing the amount of usable soil carried away from the work area.
Typical applications include:
- Root removal
- Brush clearing
- Rock removal
- Land clearing
- Forestry cleanup
- Building debris removal
- Scrap yard cleanup
- Storm debris
- Site preparation
- Property maintenance
The rake can also be used to loosen and smooth the ground while leaving soil behind.
6,000 LB Hydraulic Clamping Force
The grapple produces up to 6,000 lbs of maximum clamping force at 3,000 PSI.
Combined with the 43″ grapple opening, this provides substantial holding power for grabbing and controlling bulky or irregular loads such as brush, roots, logs and demolition debris.
In addition, the hydraulic system incorporates a safety check valve, while the attachment includes hoses and couplers on complete grapple configurations.
Heavy 1.5″ Rake Tines With Replaceable Teeth
The XTREME DUTY Root Rake uses heavy 1.5″ thick rake tines for demanding ground-engaging applications.
Replaceable teeth provide serviceability at the primary ground-contact points rather than requiring replacement of the complete tine.
Replacement teeth are available under item number 6BTCTIO3.
74″, 80″ & 86″ Root Rake Grapple Models
Choose the width that best matches your host machine and application.
| Width | Tines | Avg. Tine Spacing | Est. Weight | Max Opening |
|---|---|---|---|---|
| 74″ | 7 | 11.25″ | 1,172 lbs | 43″ |
| 80″ | 8 | 10.25″ | 1,260 lbs | 43″ |
| 86″ | 9 | 9.75″ | 1,288 lbs | 43″ |
All complete grapple models provide up to 6,000 lbs of clamping force at 3,000 PSI.
Complete Root Rake Grapple or Rake Only
The XTREME DUTY Root Rake is available in two distinctly different configurations.
Complete Root Rake Grapple: Includes the hydraulic grapple assembly for grabbing, clamping and transporting material.
Root Rake Only: Includes the rear root rake attachment without the hydraulic grapple assembly.
IMPORTANT — SELECT YOUR MODEL CAREFULLY
Product options include both the COMPLETE ROOT RAKE GRAPPLE and the ROOT RAKE ONLY.
If you want the hydraulic grapple shown on this product page, select a model specifically identified as “Root Rake with Grapple.”
If you select a “Root Rake (Rake Only)” model, you are purchasing the rake portion without the grapple assembly.
This warning is worth making prominent near the WooCommerce model selector as well.
Rake-Only Models
For customers who need the aggressive root rake without hydraulic grappling capability, rake-only configurations are available.
| Width | Tines | Avg. Tine Spacing | Est. Weight |
|---|---|---|---|
| 74″ | 7 | 11.25″ | 634 lbs |
| 80″ | 8 | 10.75″ | 696 lbs |
| 86″ | 9 | 9.75″ | 740 lbs |
The rake-only models use the same heavy 1.5″ rake tine construction and are equipped with a Universal Skid Steer Quick Attach.
Built for Skid Steer & Tractor Loaders
The XTREME DUTY Root Rake Grapple is designed for skid steer and tractor loaders from 51–100 HP.
Because machine capacity, hydraulic specifications and hitch configurations vary, the attachment should be properly matched to the host machine.
Specify your machine make and model when ordering.
Frequently Asked Questions
What is a root rake grapple used for?
A root rake grapple is designed to excavate and handle roots, rocks, brush and debris while allowing loose soil to pass between the rake tines. It is commonly used for land clearing, site preparation and property cleanup.
How much clamping force does this grapple have?
The XTREME DUTY Root Rake Grapple provides up to 6,000 lbs of clamping force at 3,000 PSI.
How far does the grapple open?
Maximum grapple opening is 43 inches.
What widths are available?
Complete grapple and rake-only configurations are available in 74″, 80″ and 86″ widths.
How thick are the rake tines?
The rake uses heavy 1.5″ thick tines with replaceable teeth.
Can I buy the root rake without the grapple?
Yes. Rake-only models are available. Be careful when selecting the WooCommerce model because rake-only and complete grapple configurations are separate options.
What size machines is it designed for?
The attachment is designed for skid steer and tractor loaders from 51–100 horsepower.
Are replacement teeth available?
Yes. Replacement teeth are available under item number 6BTCTIO3.
Choose Your XTREME DUTY Root Rake Grapple
Select the appropriate 74″, 80″ or 86″ width and choose between the complete hydraulic grapple or rake-only configuration.
Need help selecting the correct model? Call Construction Attachments at 800-255-4461 with your machine make and model.
24-Month Factory Warranty
