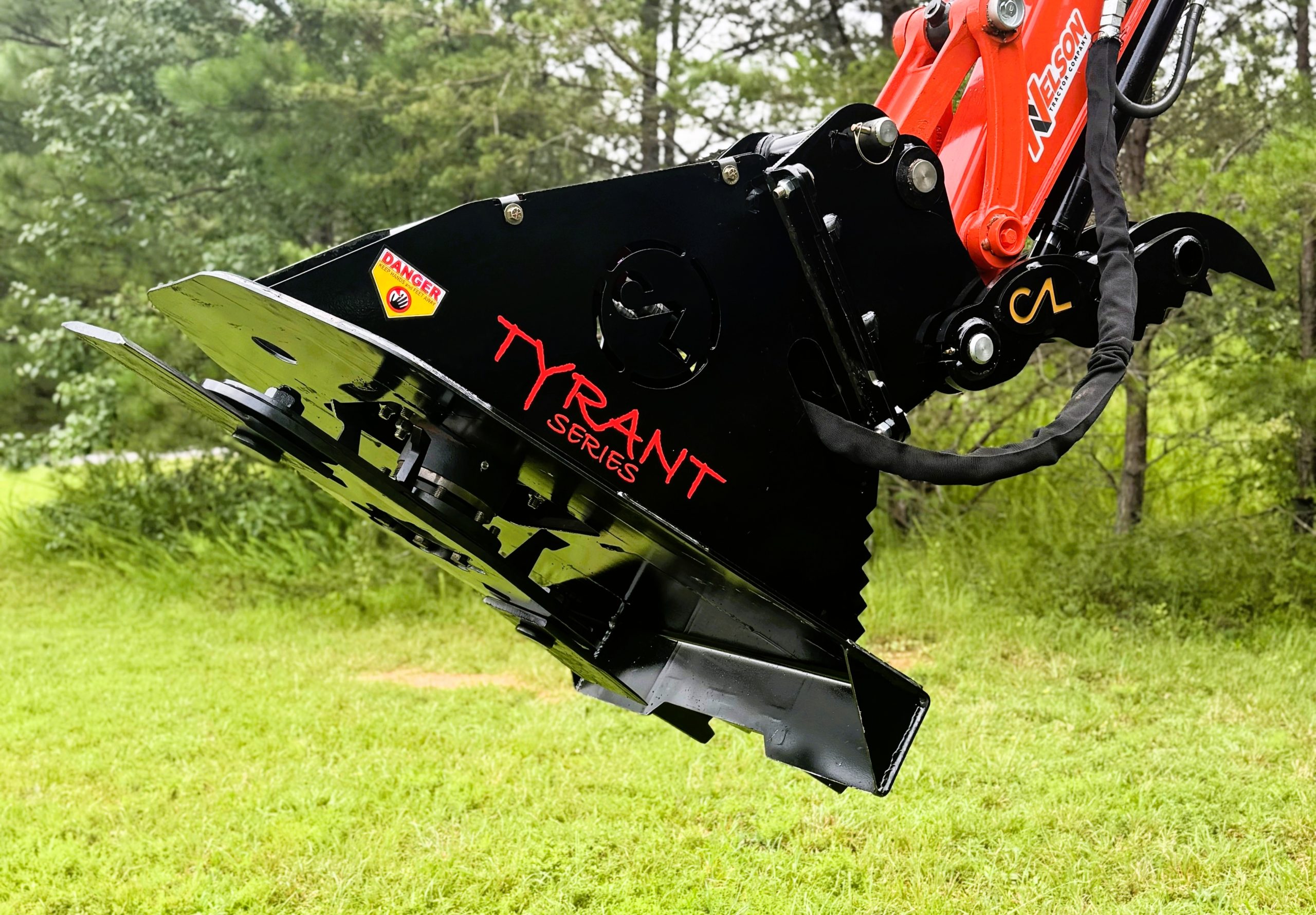

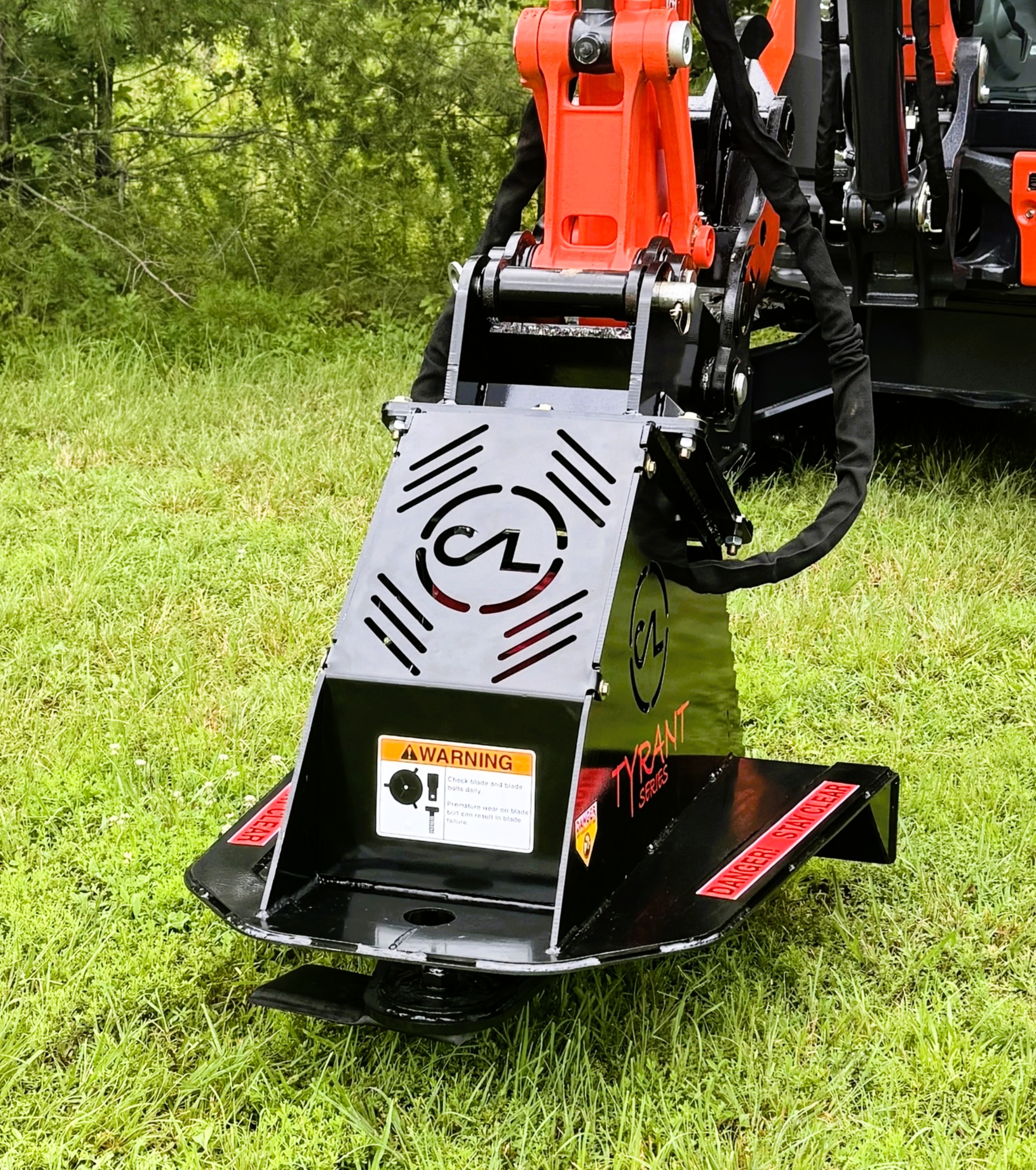

Tyrant Series II Mini Excavator Brush Cutter
The Construction Attachments Tyrant Series II Mini Excavator Brush Cutter is engineered for aggressive brush clearing, vegetation management and land-clearing applications. Designed for excavators from 5,000 to 20,000 lbs., this hydraulic rotary brush cutter combines heavy-duty construction with the ability to cut material up to 6 inches in diameter.
Unlike attachments that limit the versatility of the host machine, the Tyrant Series II maintains full grappling and grubbing capability when used with an excavator thumb. As a result, operators can cut vegetation, move debris and handle material without constantly changing attachments.
Built for Serious Brush Clearing
The Tyrant Series II features a heavy 1-inch blade carrier and a 3/16-inch deck reinforced with 1/4-inch material for demanding cutting applications.
In addition, the recessed carrier design helps protect bolt heads from impact and debris. A fully welded bolt protector further shields critical blade-carrier hardware during operation.
Tyrant Series II Features
- Up to 6″ cutting capacity
- 42″ and 48″ true cutting widths
- Heavy-duty 1″ blade carrier
- 3/16″ deck with 1/4″ reinforcement
- Two-blade cutting system
- 48cc gear-style hydraulic motor
- 10–32 GPM required hydraulic flow
- No case drain required
- Recessed carrier design for bolt-head protection
- Fully welded blade-carrier bolt protector
- Full grappling and grubbing capability with thumb
- Pin-on and quick-connect hitch options
- Multiple jumper hose lengths available
Cut Brush, Saplings & Heavy Vegetation
The Tyrant Series II is designed to turn a mini excavator into a versatile land-clearing machine.
With a cutting capacity of up to 6 inches in diameter, operators can tackle brush, saplings, overgrowth and woody vegetation in areas that may be difficult to reach with conventional mowing equipment.
Because the cutter is excavator-mounted, the operator can also reach slopes, ditch banks, pond edges, fence lines and other difficult terrain where a conventional tractor or skid steer cutter may be less practical.
Full Grappling & Grubbing Capability
One of the Tyrant Series II’s most useful features is its ability to work in combination with an excavator thumb.
After cutting brush or vegetation, the operator can use the thumb and cutter to grapple, grub and reposition material. Therefore, one attachment can perform more of the clearing process before another attachment is needed.
This capability is especially useful for:
- Land clearing
- Brush removal
- Property maintenance
- Right-of-way maintenance
- Trail clearing
- Fence-line cleanup
- Ditch and bank maintenance
- Storm cleanup
- Vegetation management
Hydraulic Performance
The Tyrant Series II uses a 48cc gear-style hydraulic motor and operates across a broad 10–32 GPM hydraulic flow range.
Most importantly, a case drain is not required, simplifying hydraulic connection compared with attachments that require an additional case-drain circuit.
Specifications
| Specification | Tyrant Series II |
|---|---|
| Excavator Weight Class | 5,000–20,000 lbs. |
| Available Cut Widths | 42″ & 48″ |
| Cutting Capacity | Up to 6″ diameter |
| Hydraulic Flow | 10–32 GPM |
| Motor | 48cc Gear-Style |
| Number of Blades | 2 |
| Blade Length | 11.94″ |
| Blade Width | 6″ |
| Minimum Cut Height | 5/16″ |
| Tip Speed | 10,000–14,000 FPM |
| Estimated Weight With Mount | 575–645 lbs |
| Case Drain | Not Required |
42″ & 48″ Mini Excavator Brush Cutter Models
The Tyrant Series II is available in 42-inch and 48-inch models, allowing the cutter to be matched to the excavator and application.
Pin-on and quick-connect hitch options are available. Jumper hoses are also available in 6-foot, 8-foot and 10-foot lengths.
Because excavator hydraulic systems and mounting configurations vary, specify the make and model of your excavator when ordering.
Frequently Asked Questions
What size excavator is the Tyrant Series II designed for?
The Tyrant Series II is designed for excavators in the 5,000–20,000 lb. weight class. Hydraulic compatibility and attachment configuration should also be verified for the specific host machine.
How large of a tree can the Tyrant Series II cut?
The Tyrant Series II has a maximum rated cutting capacity of 6 inches in diameter.
What hydraulic flow does the brush cutter require?
The required hydraulic flow range is 10–32 GPM.
Does the Tyrant Series II require a case drain?
No. The Tyrant Series II does not require a case drain.
What cutting widths are available?
The cutter is available in 42-inch and 48-inch true cutting widths.
Can I use my excavator thumb with the brush cutter?
Yes. The Tyrant Series II is designed to maintain full grappling and grubbing capability with an excavator thumb.
What type of hydraulic motor does it use?
The Tyrant Series II uses a 48cc gear-style hydraulic motor.
Configure Your Tyrant Series II
Choose your 42″ or 48″ cutter and the appropriate pin-on or quick-connect hitch configuration for your excavator.
Specify your excavator make and model when ordering to ensure the proper attachment configuration.
