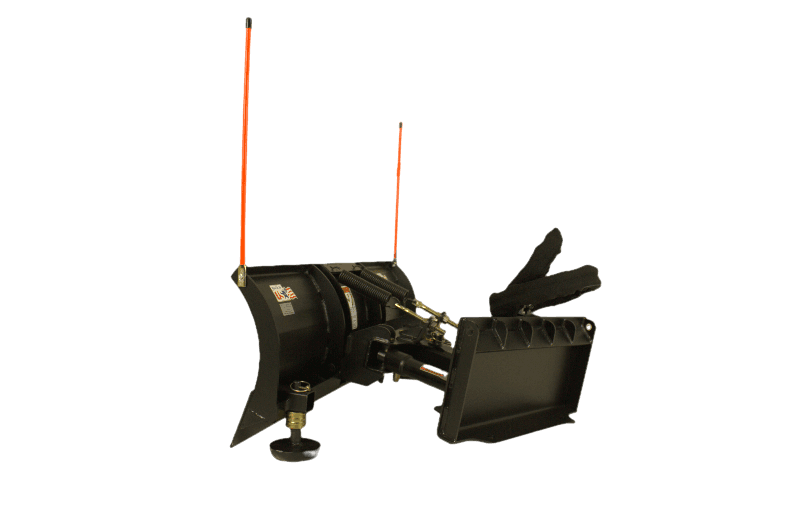

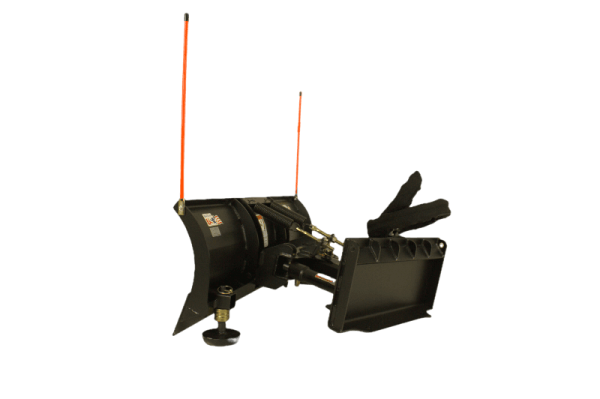

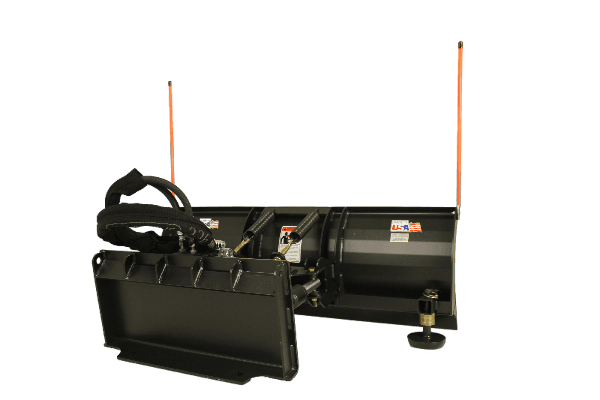

Mini Slow Blade
Designed to fit ride-on or walk-behind mini skid steer and track loaders
- Hydraulic models come standard with 2 single-acting plow cylinders
- An optional crossover relief valve to protect and extend cylinder life may be factory installed or added at any time using the standard hose assembly
Note: Hydraulic blades require auxiliary hydraulic function for angle control left and right. For use on tractor front end loaders, you must install one-touch third function hydraulics or operate using tractor rear remotes. CAL offers an extensive line of hydraulic kits to fit your tractor and loader combination.
PRODUCT FEATURES:
- Four-way blade with up to 30 degree angle left or right
- Available in manual angle or hydraulic angle operation
- Manual snow blade can be easily converted to hydraulic by installing hose assembly and crossover relief, and by adding hydraulic cylinders
- Requires no cutting or welding to convert
- Replaceable reversible bolt-on cutting edge available in steel
- Spring-trip moldboard standard on all models (2 springs come standard, additional springs may be purchased)
- Standard equipment includes high visibility snow guides
- Snow guides provide operator visibility and certainty of edge position even in low light and poor visibility conditions
- Adjustable skid shoes standard set blade at a preset height to prevent gouging; prolongs blade life
- Multiple sizes available in widths from 36″ to 54″
Cylinder Bore: 1.5″
Cylinder Rod Diameter: 1.5″ Cylinder Stroke: 6″
Item # 6H CCCYM I NSN BLD Call for pricing
Description
| Item # | Description | # of Trip Springs | Blade Height | Working Angled Width | Est Weight (lbs) | List Price | Less 25% | Less 27% |
|---|---|---|---|---|---|---|---|---|
| 1SNBMN36MS | 36″ Mini Snow Blade Manual with Steel Edge | 2 | 16″ | 33.31″ | 158 | $1,940 | $1,455.00 | $1,416.20 |
| 1SNBMN36HS | 36″ Mini Snow Blade Hydraulic with Steel Edge | 2 | 16″ | 33.31″ | 183 | $2,536 | $1,902.00 | $1,851.28 |
| 1SNBMN48MS | 48″ Mini Snow Blade Manual with Steel Edge | 2 | 16″ | 44.44″ | 219 | $1,978 | $1,483.50 | $1,443.94 |
| 1SNBMN48HS | 48″ Mini Snow Blade Hydraulic with Steel Edge | 2 | 16″ | 44.44″ | 244 | $2,574 | $1,930.50 | $1,879.02 |
| 1SNBMN54MS | 54″ Mini Snow Blade Manual with Steel Edge | 2 | 16″ | 49.97″ | 249 | $2,029 | $1,521.75 | $1,481.17 |
| 1SNBMN54HS | 54″ Mini Snow Blade Hydraulic with Steel Edge | 2 | 16″ | 49.97″ | 274 | $2,616 | $1,962.00 | $1,909.68 |
Specify make and model of host machine when ordering. Prices and specifications subject to change without notice.
18 Month Factory Warranty
800.255.4461 • WWW.CONSTRUCTIONATTACHMENTS.COM • SALES@CALMFG.COM
